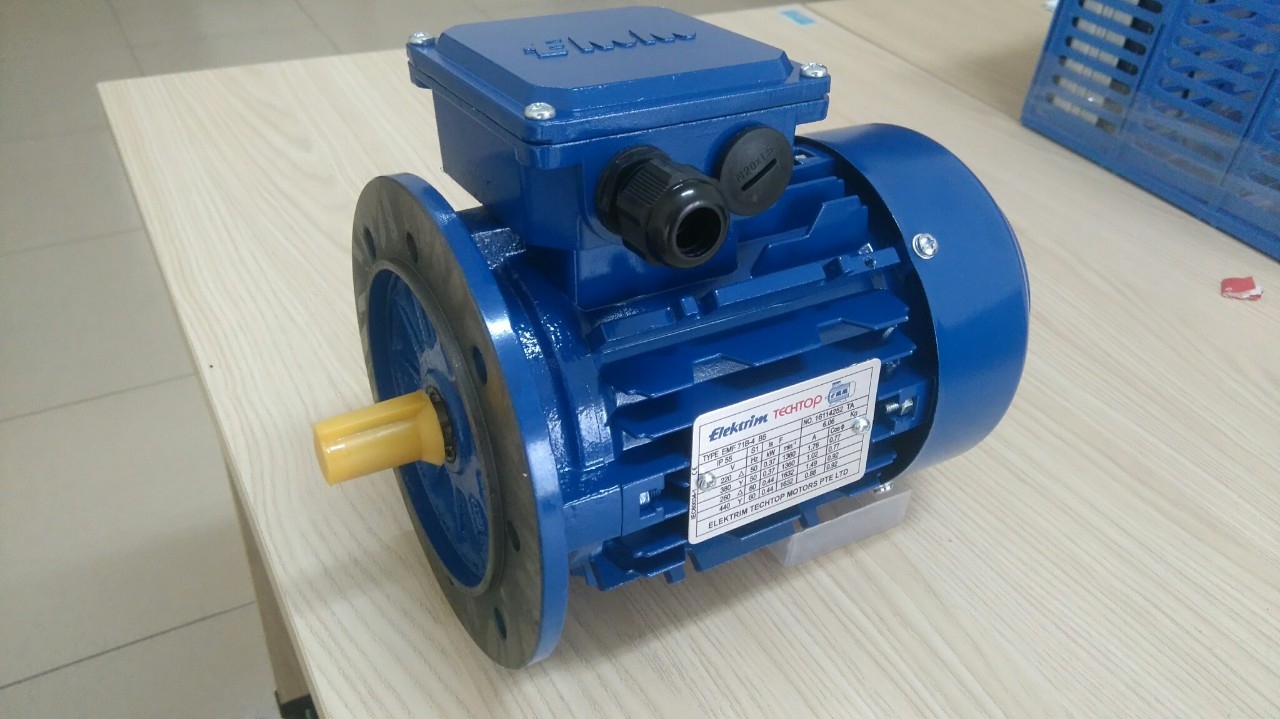

HP | kW | RPM | Frame | EFF | PF | Voltage | Full Load Amps | IEC Class | IEC Design | Net Weight | D-Flange B35 Part Number | List Price | Notes (a) | 0.08 | 0.06 | 1800 | 56 | 55 | 66 | 230/460V | 0.44/0.22 | IE1 | – | 5.9 | 40MDM-3-.08-18 | 220.00 | 13,15,17,19 | 0.12 | 0.09 | 3600 | 56 | 58 | 75 | 230/460V | 0.56/0.28 | IE1 | – | 6.6 | 40MDM-3-.12-36 | 227.00 | 13,15,17,19 | 1800 | 56 | 61 | 65 | 230/460V | 0.6/0.3 | IE1 | – | 6.4 | 40MDM-3-.12-18 | 227.00 | 13,15,17,19 | 0.17 | 0.12 | 3600 | 56 | 63 | 83 | 230/460V | 0.6/0.3 | IE1 | – | 7.5 | 40MDM-3-.17-36 | 231.00 | 13,15,17,19 | 1800 | 63 | 64 | 72 | 230/460V | 0.7/0.35 | IE1 | – | 7.9 | 40MDM-3-.17-18 | 235.00 | 13,15,17,19 | 0.25 | 0.18 | 3600 | 63 | 65 | 80 | 230/460V | 1/0.5 | IE1 | – | 7.9 | 40MDM-3-.25-36 | 237.00 | 13,15,17,19 | 1800 | 63 | 64 | 70 | 230/460V | 1.1/0.55 | IE1 | – | 9.3 | 40MDM-3-.25-18 | 243.00 | 13,15,17,19 | 1200 | 71 | 57 | 68 | 230/460V | 1.4/0.7 | IE1 | – | 10.8 | 40MDM-3-.25-12 | 275.00 | 13,15,17,19 | 0.33 | 0.25 | 3600 | 63 | 68 | 83 | 230/460V | 1.1/0.55 | IE1 | – | 9.3 | 40MDM-3-.33-36 | 250.00 | 13,15,17,19 | 1800 | 71 | 66 | 68 | 230/460V | 1.4/0.7 | IE1 | – | 10.6 | 40MDM-3-.33-18 | 250.00 | 13,15,17,19 | 1200 | 71 | 55 | 70 | 230/460V | 1.8/0.9 | IE1 | – | 12.8 | 40MDM-3-.33-12 | 291.00 | 13,15,17,19 | 0.5 | 0.37 | 3600 | 71 | 71 | 68 | 230/460V | 1.8/0.9 | IE1 | – | 11.7 | 40MDM-3-.50-36 | 267.00 | 13,15,17,19 | 1800 | 71 | 68 | 68 | 230/460V | 2/1 | IE1 | – | 13 | 40MDM-3-.50-18 | 267.00 | 13,15,17,19 | 1200 | 80 | 64 | 64 | 230/460V | 2.4/1.2 | IE1 | – | 16 | 40MDM-3-.50-12 | 352.00 | 13,15,17,19 | 0.75 | 0.55 | 3600 | 71 | 75 | 85 | 230/460V | 2.4/1.2 | IE1 | – | 13.2 | 40MDM-3-.75-36 | 291.00 | 13,15,17,19 | 1800 | 80 | 70 | 72 | 230/460V | 3/1.5 | IE1 | – | 16.5 | 40MDM-3-.75-18 | 332.00 | 13,15,17,19 | 1200 | 80 | 67 | 72 | 230/460V | 3.2/1.6 | IE1 | – | 19 | 40MDM-3-.75-12 | 396.00 | 13,15,17,19 | 1 | 0.75 | 3600 | 80 | 74 | 80 | 230/460V | 3.2/1.6 | IE1 | – | 17.2 | 40MDM-3-1-36 | 364.00 | 13,15,17,19 | 1800 | 80 | 75 | 73 | 230/460V | 3.4/1.7 | IE1 | – | 19.4 | 40MDM-3-1-18 | 339.00 | 13,15,17,19 | 1200 | 90S | 80 | 65 | 230/460V | 3.6/1.8 | IE2 | H | 36.4 | 20MDM-3-1-12 | 716.00 | 13,14,15,17,19 | 1.5 | 1.1 | 3600 | 80 | 77 | 84 | 230/460V | 4.4/2.2 | IE1 | – | 20.1 | 40MDM-3-1.5-36 | 395.00 | 13,15,17,19 | 1800 | 90S | 84 | 72 | 230/460V | 4.6/2.3 | IE2 | H | 36 | 20MDM-3-1.5-18 | 690.00 | 13,14,15,17,19 | 2 | 1.5 | 3600 | 90S | 85.5 | 79 | 230/460V | 5.6/2.8 | IE3 | N | 31 | 20MDM-3-2-36 | 671.00 | 13,14,15,17,19 | 1800 | 90L | 84 | 74 | 230/460V | 6/3 | IE2 | H | 42 | 20MDM-3-2-18 | 731.00 | 13,14,15,17,19 | 3 | 2.2 | 3600 | 90L | 86.5 | 80 | 230/460V | 8/4 | IE3 | N | 38 | 20MDM-3-3-36 | 832.00 | 13,14,15,17,19 | 1800 | 100L | 87.5 | 79 | 230/460V | 8/4 | IE2 | H | 56 | 20MDM-3-3-18 | 823.00 | 13,14,15,17,19 | 1200 | 112M | 87.5 | 72 | 230/460V | 8.8/4.4 | IE2 | H | 71 | 20MDM-3-3-12 | 1,237.00 | 13,14,15,17,19 |
HP | kW | RPM | Frame | EFF | PF | Voltage | Full Load Amps | IEC Class | IEC Design | Net Weight | D-Flange B35 Part Number | List Price | Notes (a) | 4 | 3 | 3600 | 100L | 88.5 | 81 | 230/460V | 10.6/5.3 | IE3 | N | 59 | 20MDM-3-4-36 | 921.00 | 13,14,15,17,19 | 1800 | 100L | 87.5 | 74 | 230/460V | 11.6/5.8 | IE2 | H | 66 | 20MDM-3-4-18 | 947.00 | 13,14,15,17,19 | 1200 | 132S | 87.5 | 76 | 230/460V | 11.4/5.7 | IE2 | H | 119 | 20MDM-3-4-12 | 1,633.00 | 13,15,18,20,23 | 5.5 | 4 | 3600 | 112M | 89 | 85 | 230/460V | 13.2/6.6 | IE3 | N | 74 | 20MDM-3-5.5-36 | 1,012.00 | 13,14,15,17,19 | 1800 | 112M | 87.5 | 78 | 230/460V | 14.8/7.4 | IE2 | H | 78 | 20MDM-3-5.5-18 | 1,010.00 | 13,14,15,17,19 | 1200 | 132M | 87.5 | 76 | 230/460V | 15/7.5 | IE2 | H | 146 | 20MDM-3-5.5-12 | 1,643.00 | 13,15,18,20,23 | 7.5 | 5.5 | 3600 | 132S | 89.5 | 88 | 230/460V | 17.6/8.8 | IE3 | N | 132 | 20MDM-3-7.5-36 | 1,254.00 | 13,15,18,20,23 | 1800 | 132S | 89.5 | 79 | 230/460V | 19.6/9.8 | IE2 | H | 156 | 20MDM-3-7.5-18 | 1,426.00 | 13,15,18,20,23 | 1200 | 132M | 89.5 | 77 | 230/460V | 22.4/11.2 | IE2 | H | 159 | 20MDM-3-7.5-12 | 2,668.00 | 13,15,18,20,23 | 10 | 7.5 | 3600 | 132S | 90.2 | 91 | 230/460V | 23/11.5 | IE3 | N | 156 | 20MDM-3-10-36 | 1,419.00 | 13,15,18,20,23 | 1800 | 132M | 89.5 | 80 | 230/460V | 26.2/13.1 | IE2 | H | 162 | 20MDM-3-10-18 | 1,638.00 | 13,15,18,20,23 | 1200 | 160M | 89.5 | 80 | 230/460V | 26.2/13.1 | IE2 | H | 221 | 20MDM-3-10-12 | 2,764.00 | 15,18,20,23 | 15 | 11 | 3600 | 160M | 91 | 86 | 230/460V | 35.2/17.6 | IE3 | N | 212 | 20MDM-3-15-36 | 1,978.00 | 15,18,20,23 | 1800 | 160M | 91 | 80 | 230/460V | 38/19 | IE2 | H | 234 | 20MDM-3-15-18 | 2,030.00 | 15,18,20,23 | 1200 | 160L | 90.2 | 82 | 230/460V | 37.4/18.7 | IE2 | H | 276 | 20MDM-3-15-12 | 3,281.00 | 15,18,20,23 | 20 | 15 | 3600 | 160M | 91 | 89 | 230/460V | 46.4/23.2 | IE3 | N | 227 | 20MDM-3-20-36 | 2,344.00 | 15,18,20,23 | 1800 | 160L | 91 | 80 | 230/460V | 51.8/25.9 | IE2 | H | 278 | 20MDM-3-20-18 | 2,437.00 | 15,18,20,23 | 1200 | 180L | 90.2 | 81 | 230/460V | 51.6/25.8 | IE2 | H | 375 | 20MDM-3-20-12 | 3,948.00 | 15,18,20,23 | 25 | 18.5 | 3600 | 160L | 91.7 | 90 | 230/460V | 56.2/28.1 | IE3 | N | 260 | 20MDM-3-25-36 | 2,827.00 | 15,18,20,23 | 1800 | 180M | 92.4 | 85 | 230/460V | 59.2/29.6 | IE2 | H | 373 | 20MDM-3-25-18 | 2,971.00 | 15,18,20,23 | 1200 | 200L | 92 | 77 | 230/460V | 66/33 | IE2 | H | 624 | 20MDM-3-25-12 | 6,371.00 | 16,18,20,23 | 30 | 22 | 3600 | 180M | 91.7 | 87 | 230/460V | 69.2/34.6 | IE3 | N | 345 | 20MDM-3-30-36 | 3,412.00 | 15,18,20,23 | 1800 | 180L | 92.4 | 86 | 230/460V | 69.4/34.7 | IE2 | H | 397 | 20MDM-3-30-18 | 3,702.00 | 15,18,20,23 | 1200 | 200L | 92.1 | 79 | 230/460V | 76/38 | IE2 | H | 648 | 20MDM-3-30-12 | 6,705.00 | 16,18,20,23 | 40 | 30 | 3600 | 200L | 92.4 | 90 | 230/460V | 90/45 | IE3 | N | 585 | 20MDM-3-40-36 | 7,930.00 | 16,18,20,23 | 1800 | 200L | 93.4 | 87 | 230/460V | 92/46 | IE2 | H | 628 | 20MDM-3-40-18 | 6,520.00 | 16,18,20,23 | 1200 | 225M | 93 | 81 | 230/460V | 100/50 | IE2 | H | 836 | 20MDM-3-40-12 | 8,668.00 | 16,18,20,23 | 50 | 37 | 3600 | 200L | 93 | 88 | 230/460V | 114/57 | IE3 | N | 624 | 20MDM-3-50-36 | 8,730.00 | 16,18,20,23 | 1800 | 225S | 93.7 | 87 | 230/460V | 114/57 | IE2 | H | 811 | 20MDM-3-50-18 | 8,356.00 | 16,18,20,23 | 1200 | 250M | 93 | 81 | 230/460V | 124/62 | IE2 | H | 1010 | 20MDM-3-50-12 | 10,854.00 | 16,18,20,23 | 60 | 45 | 3600 | 225M | 93.6 | 87 | 230/460V | 138/69 | IE3 | N | 838 | 20MDM-3-60-36 | 9,628.00 | 16,18,20,23 | 1800 | 225M | 93.9 | 87 | 230/460V | 138/69 | IE2 | H | 871 | 20MDM-3-60-18 | 9,479.00 | 16,18,20,23 | 1200 | 280S | 93.7 | 83 | 230/460V | 146/73 | IE2 | H | 1504 | 20MDM-3-60-12 | 14,710.00 | 16,18,20,23 | 75 | 55 | 3600 | 250M | 93.6 | 90 | 230/460V | 164/82 | IE3 | N | 1085 | 20MDM-3-75-36 | 12,488.00 | 16,18,20,23 | 1800 | 250M | 94.1 | 89 | 230/460V | 164/82 | IE2 | H | 1054 | 20MDM-3-75-18 | 10,577.00 | 16,18,20,23 | 1200 | 280M | 94.2 | 81 | 230/460V | 182/91 | IE2 | H | 1638 | 20MDM-3-75-12 | 15,740.00 | 16,18,20,23 | 100 | 75 | 3600 | 280S | 94.1 | 90 | 230/460V | 222/111 | IE3 | N | 1444 | 20MDM-3-100-36 | 13,955.00 | 16,18,20,23 | 1800 | 280S | 95 | 89 | 230/460V | 224/112 | IE2 | H | 1495 | 20MDM-3-100-18 | 13,909.00 | 16,18,20,23 | 1200 | 315S | 94.5 | 81 | 230/460V | 246/123 | IE2 | H | 2168 | 20MDM-3-100-12 | 21,662.00 | 16,18,20,23 | 125 | 90 | 3600 | 280M | 95 | 90 | 230/460V | 264/132 | IE3 | N | 1517 | 20MDM-3-125-36 | 16,999.00 | 16,18,20,23 | 1800 | 280M | 95.3 | 89 | 230/460V | 264/132 | IE2 | H | 1543 | 20MDM-3-125-18 | 15,015.00 | 16,18,20,23 | 1200 | 315M | 94.7 | 81 | 230/460V | 294/147 | IE2 | H | 2366 | 20MDM-3-125-12 | 24,085.00 | 16,18,20,23 | 150 | 110 | 1800 | 315M | 95 | 90 | 230/460V | 322/161 | IE2 | H | 1995 | 20MDM-3-150-18 | 21,345.00 | 16,18,20,23 | 220 | 160 | 1800 | 315M | 95.5 | 90 | 230/460V | 468/234 | IE2 | H | 2310 | 20MDM-3-220-18 |
|
